Search the GIS

You can search the geodatabase for features or objects of an asset group by selecting values in the available attribute fields. For more information, see Search Within a Numeric Range, Search Within a Date Range, and Perform a Wildcard Search.

PREREQUISITES:

  • Set fields to be displayed as Visible for the asset in Designer under GIS > Asset Groups.
  1. Click GIS Search on the main toolbar.

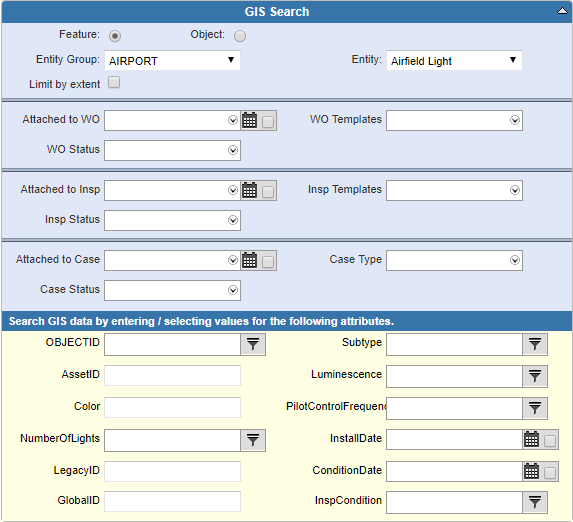

  2. Enter the search criteria in the GIS Search panel. See GIS Search Panel Fields for more information on the search fields.

NOTE: There are two parts of a GIS saved search. The first part is the work activity filters, found in blue in the top half of the GIS Search panel. The second part is the attributes of the asset found under Search GIS data by entering/selecting values for the following attributes in the bottom half of the GIS Search panel. It is important to note that any GIS saved searches that include work activity filters, such as Attached to WO or WO Status, cannot be used for event layers. That is because they are feature service layers, meaning Cityworks can only interact with the GIS part of the GIS saved search and not any related work activity filters. See How to Use GIS Saved Searches as Event Layers for more information.

The search criteria is shown in the Search Query panel.

  1. In the Visible Fields in Search Results panel, highlight all the fields to be returned in the search.
  2. If desired, in the Sort Field panel, select a field to sort the search results by. Select the Descending check box to sort the search results in descending order by that field, or do not select it to sort the search results in ascending order. If a saved search is created, the Sort Field selected will also apply to that saved search.
  3. Click Search.

TIP: If you wish to clear the existing search criteria and enter new criteria, click Clear to clear the form.



Last updated 3/22/2019.
